Jetson Orin rootfs-ab slot switches to B unexpectedly — nvbootctrl debug

The rootfs-ab partition layout on Jetson Orin is the same mechanism OTA update systems use to switch between software versions — but it can also trigger unexpectedly when a device reboots without confirming successful boot. Understanding the retry counter is the key to preventing unintended slot switches in production.

Key Insights

• The retry counter, not a filesystem check, controls slot switches — each unconfirmed reboot decrements a per-slot counter; when it hits 0, the bootloader marks the slot unbootable and tries the other
• nvbootctrl mark-boot-successful must be called explicitly — the bootloader does not auto-confirm a successful boot; your software must call this
• Watchdog resets and kernel panics look identical to the bootloader — the slot counter decrements regardless of why the device rebooted
• nvbootctrl dump-slot-info is your primary diagnostic — shows retry counts, priority, and bootable status for both slots
• Asymmetric retry counts signal the root cause — if slot A has retry_count=0 and slot B has retry_count=7, the device rebooted 7 times without calling mark-boot-successful

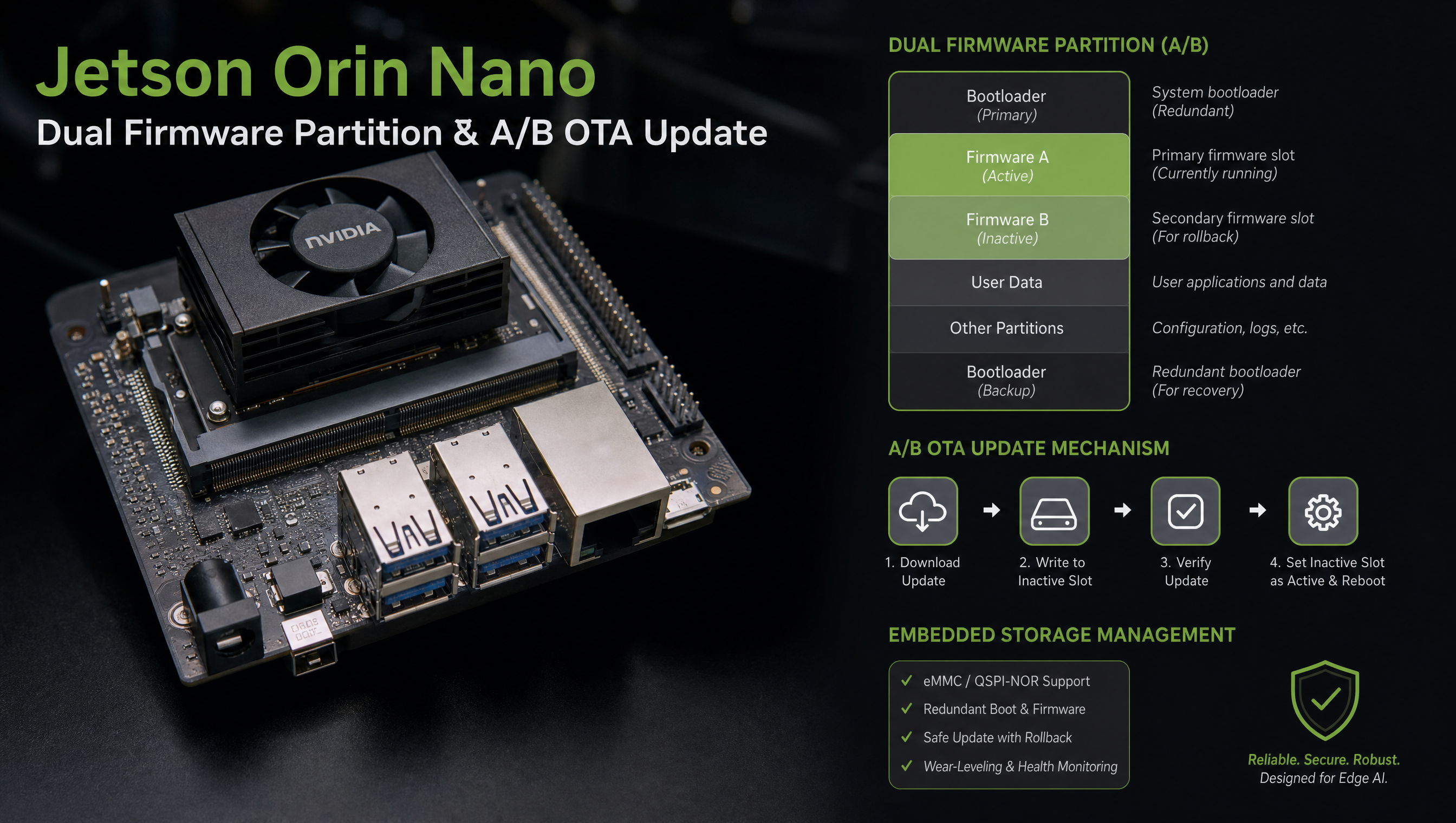

How Tegra rootfs-ab works

Jetson Orin uses a redundant partition layout when USE_REDUNDANT_FLASH_LAYOUT = "1" is set in the Yocto build. Each partition has two copies — A and B variants — including the rootfs.

The bootloader maintains a Boot Control Table (BCT) with per-slot metadata:

Field	Description
priority	Higher priority slot boots first (default: A=15, B=14)
retry_count	Decrements on each unconfirmed reboot; 0 = unbootable
successful	Set to 1 when mark-boot-successful is called

Boot sequence decision logic:

1. Select the slot with highest priority where retry_count > 0
2. Boot that slot and decrement its retry_count by 1
3. If the OS calls mark-boot-successful → reset retry_count to 7, set successful = 1
4. If the OS does NOT call mark-boot-successful (reboot/crash) → retry_count stays decremented
5. When retry_count reaches 0 → mark slot unbootable, switch to the other slot

Diagnosing an unexpected switch

# Check current slot and retry counts
nvbootctrl dump-slot-info

# Example output:
# Current boot slot: 1
# Slot 0: priority=15, retry_count=0, successful=1, bootable=false
# Slot 1: priority=14, retry_count=5, successful=0, bootable=true

# One-line current slot check
nvbootctrl get-current-slot
# Output: 1

# Check if current slot was marked successful
nvbootctrl is-slot-marked-successful $(nvbootctrl get-current-slot)
# Output: 0 (not yet marked successful)

When retry_count=0 and successful=1 on slot A, slot A was successfully marked at least once but then had its retry counter re-decremented — meaning the device rebooted after a mark-boot-successful call but the OS didn’t call it again after that reboot.

Fixing the retry counter

# Reset slot A to healthy state (run from the device)
nvbootctrl set-active-boot-slot 0      # make A the active slot
nvbootctrl mark-boot-successful        # mark current boot as successful

# Verify
nvbootctrl dump-slot-info
# Slot 0: priority=15, retry_count=7, successful=1, bootable=true

If retry_count cannot be restored via mark-boot-successful (slot 0 is marked unbootable), you need to flash slot A via SDK Manager or flash.sh.

Calling mark-boot-successful reliably

The correct place is a systemd service that runs after your application confirms it is healthy:

# /etc/systemd/system/boot-confirm.service
[Unit]
Description=Mark boot slot as successful
After=multi-user.target
Requires=multi-user.target

[Service]
Type=oneshot
RemainAfterExit=yes
ExecStart=/usr/bin/nvbootctrl mark-boot-successful

[Install]
WantedBy=multi-user.target

Enable it:

systemctl enable boot-confirm.service

For applications that take time to start, add a health check before confirming:

#!/bin/bash
# /usr/local/bin/confirm-boot.sh
# Wait for application to become healthy, then confirm boot

until curl -sf http://localhost:8080/health; do
    sleep 2
done

nvbootctrl mark-boot-successful
logger "Boot slot $(nvbootctrl get-current-slot) confirmed successful"

Common causes of unexpected switches

Root cause	Symptom	Fix
mark-boot-successful never called	retry_count decrements on every reboot	Add boot-confirm.service
Watchdog reset during startup	retry_count decrements before app is ready	Call mark-boot-successful after health check
Kernel panic	Device reboots without confirming	Fix kernel panic; check dmesg after switch
Power loss during boot	retry_count decrements, may corrupt in-progress OTA	Ensure stable power; add voltage monitoring
OTA update stale state	OTA set slot B active but never confirmed	OTA client must call mark-boot-successful after successful update

Recovering a fully unbootable device

If both slots reach retry_count=0, the device will not boot. Recovery requires flashing via recovery mode:

# Put device in recovery mode (hold FORCE_RECOVERY button, power cycle)
# On host:
sudo ./flash.sh jetson-agx-orin-devkit mmcblk0p1

For A/B-aware flashing that only updates slot A without touching slot B:

sudo ./flash.sh --no-flash jetson-agx-orin-devkit mmcblk0p1
# Then flash specific partitions via tegraflash

For the OTA update workflow that uses this mechanism, see Jetson A/B OTA updates on custom carrier boards. For flashing procedures and partition layout options, see flash.sh on Jetson Orin — complete guide.

FAQ

Why does my Jetson Orin keep booting from the B partition instead of A?

The slot A retry counter reached 0 after repeated reboots without nvbootctrl mark-boot-successful. Every reboot — including watchdog resets and kernel panics — decrements the counter. Once it hits 0, the bootloader marks slot A unbootable and switches to slot B.

How do I check which slot Jetson Orin is currently booting from?

Run nvbootctrl dump-slot-info to see retry counts and bootable status for both slots, or nvbootctrl get-current-slot for a one-line answer.

How do I prevent the Jetson from switching slots after a planned reboot?

Call nvbootctrl mark-boot-successful once your application has confirmed it is healthy. A systemd oneshot service that runs after multi-user.target is the standard approach.

Can I manually force Jetson to boot from a specific slot?

Yes. Run nvbootctrl set-active-boot-slot 0 for slot A or nvbootctrl set-active-boot-slot 1 for slot B. The change takes effect on the next reboot.

---
